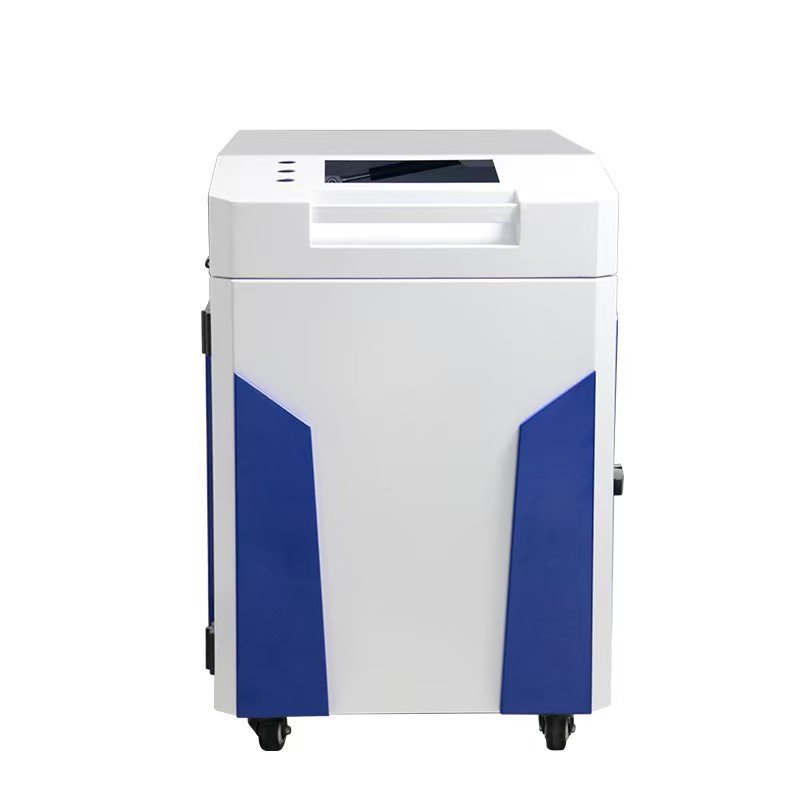

SCH-1500 (All-in-One Unit)

Parameter,Specification

Model,SCH-1500 All-in-One

Working Voltage and Freq.,AC 220V 50Hz

Operating Current,2.5-10.5A

Total Machine Power,2.35KW

Cooling Capacity,3560W

Temp. Control Accuracy,±0.1∘C

Operating Environment,”Ambient Temp ≯45∘C, Relative Humidity ≯95%RH”

Electric Heating Power,500W

Refrigerant,R22 / R410a / R407 / R134A

Rated Pump Flow Rate,80L/min

Max. Pump Lift,⩾30M

Tank Capacity,16L

Laser Connector Spec,G1/2 * ϕ12 Quick Connector

QBH Connector Spec,G1/2 * ϕ6 Quick Connector

Machine Weight,75Kg

Machine Dimensions,825mm455mm700mm (LWH)

Features,”High efficiency & Eco-friendly, Dual temp & Dual control, Flow and Over-temp alarm, Compressor overheat protection”
