Feature,Specification Details

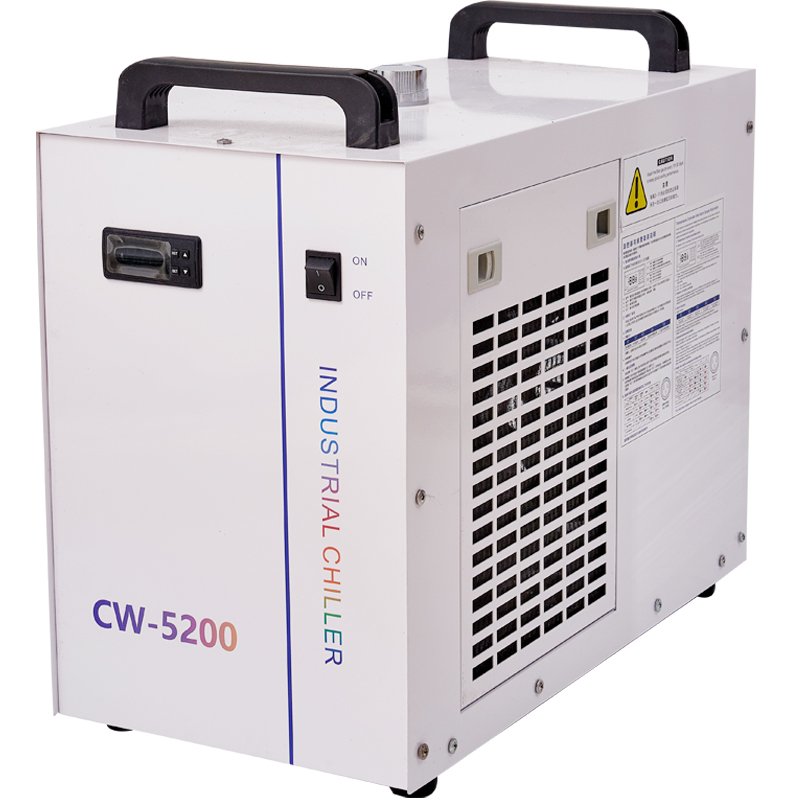

Model,CW-5200AG/AH
Voltage,AC 1P 220-240V / 110V
Frequency,50Hz
Current,0.5-4.8A
Total Power,0.68KW
Compressor Power,0.61KW (0.81HP)
Cooling Capacity,5970Btu/h / 1.75KW / 1505Kcal/h
Pump Power,0.03KW / 0.048KW
Max. Pump Head,12M / 16M
Max. Flow Rate,13L/min / 16L/min
Refrigerant,R410a / R407C
Temp. Precision,±0.3℃
Throttling Device,Capillary (毛细管)

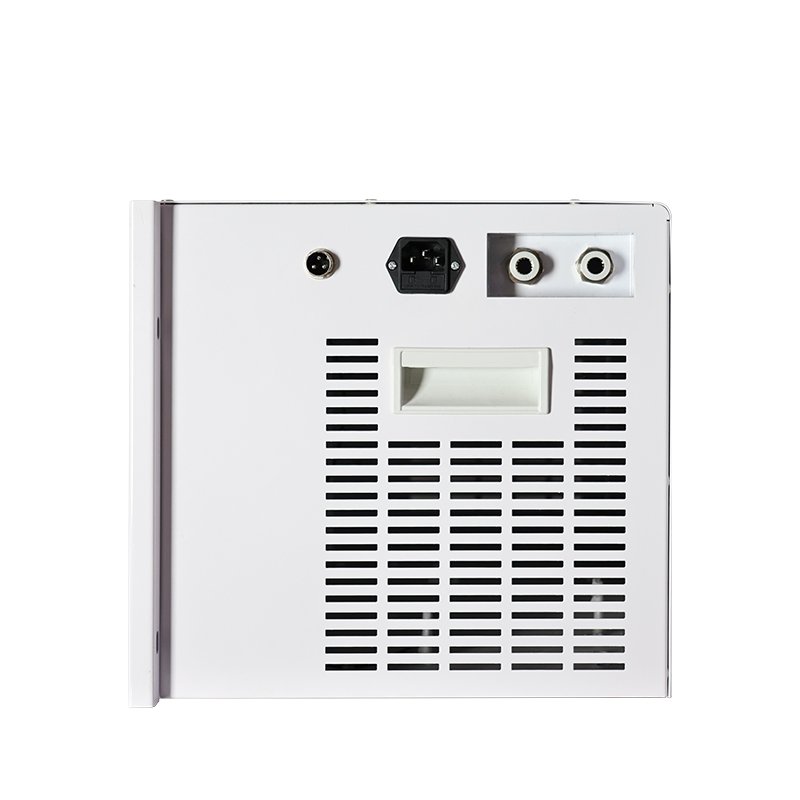

Inlet/Outlet,φ10 Brass connector (Default) / Customizable
Tank Capacity,6L
Machine Dimensions,560 × 285 × 470mm (L × W × H)
Packing Dimensions,660 × 390 × 520mm (L × W × H)
Net Weight,25Kg
Gross Weight,28Kg
Safety Protection,”Flow protection, water temp high/low alarm, compressor overload protection, room temp high alarm”
